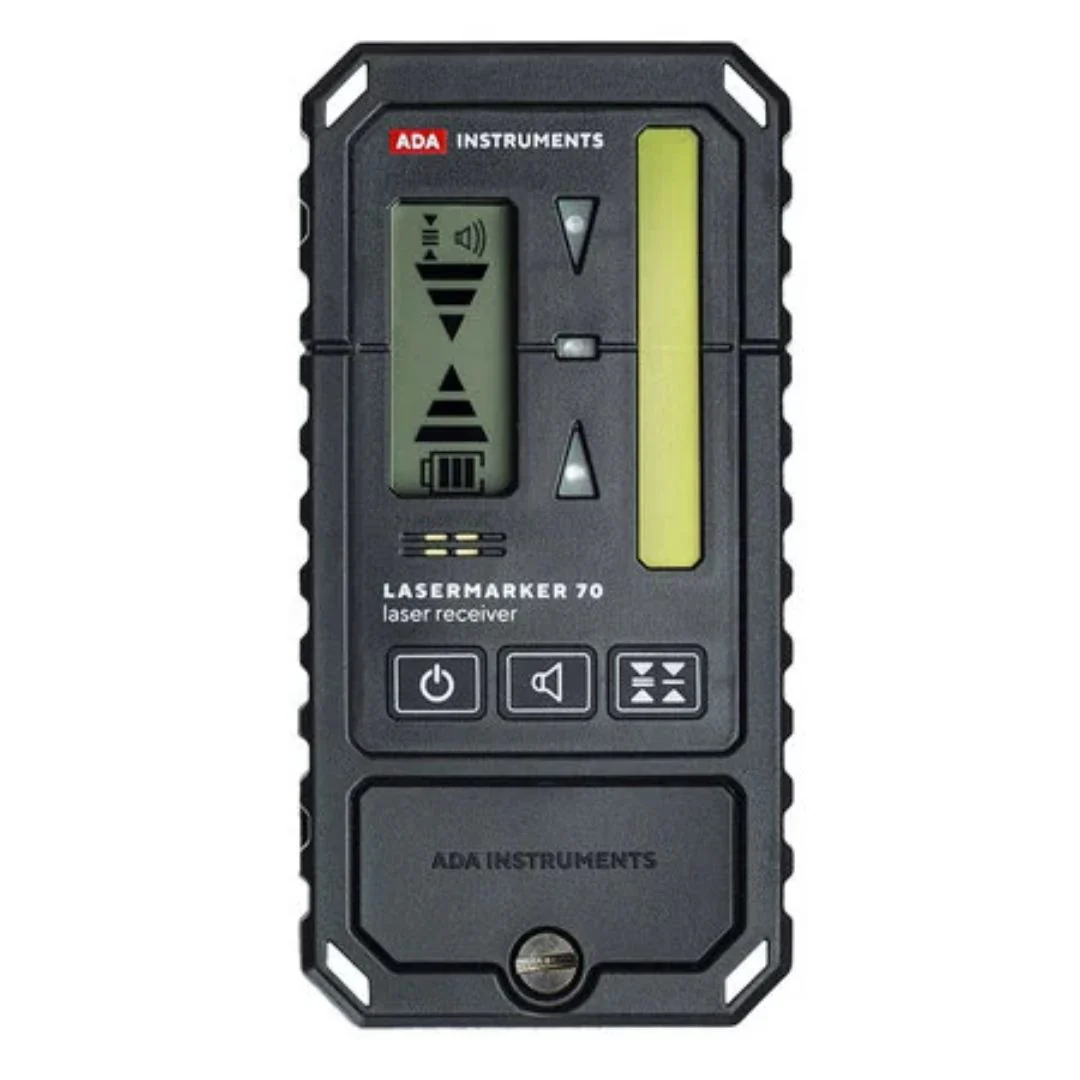

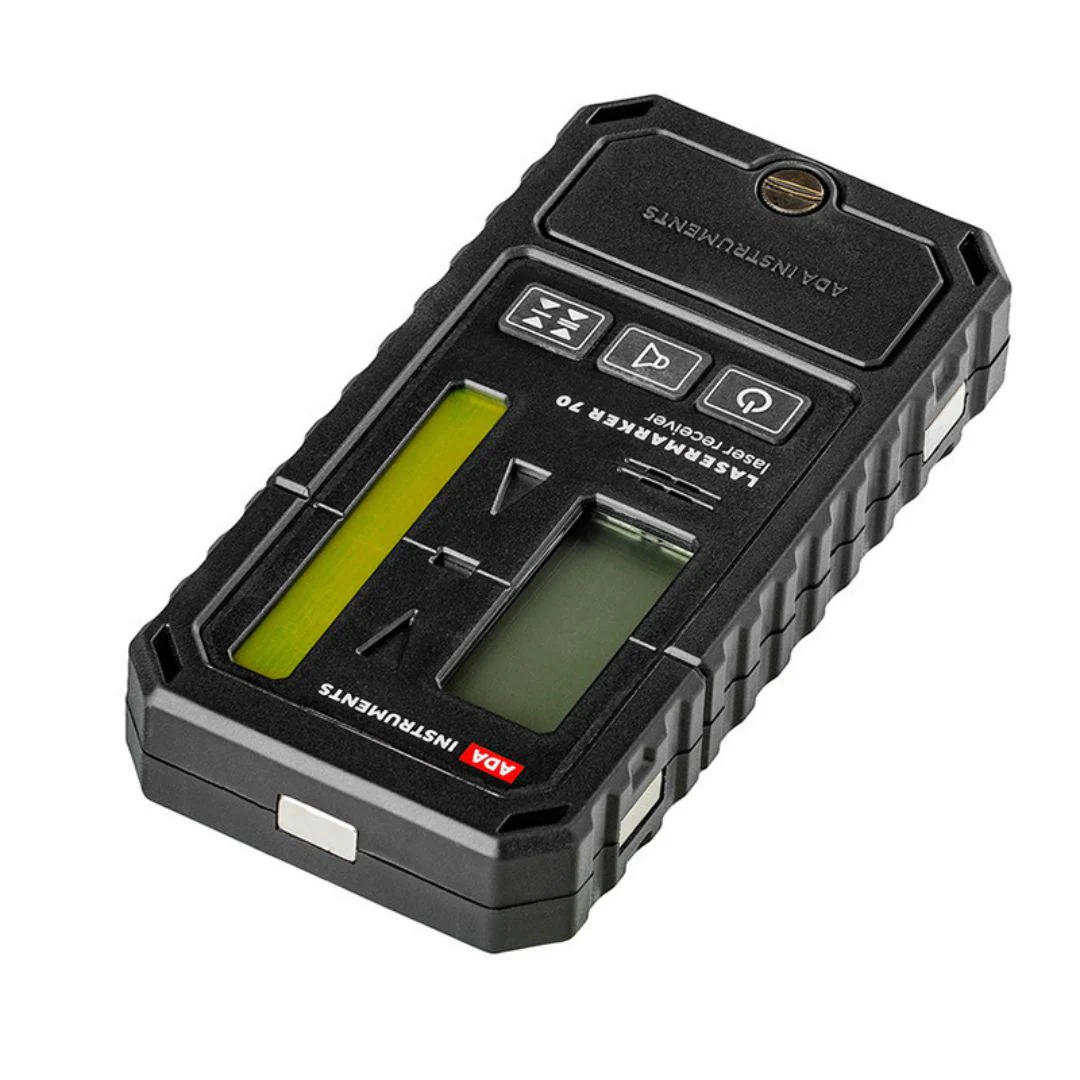

ADA Marker 70 manual receiver for Red and Green light lasers including staff clamp with adjustable Pulse Frequency

ATTENTION:

Both red and green line lasers must have a pulse function to be able to receive a line laser receiver.

It is possible that a line laser emits a pulse frequency that the receiver does not detect because it operates on a different frequency.

This means that not every line laser receiver can be used on line lasers that have a pulse or hand receiver function.

The marker 70 has an adjustable pulse frequency, which means that it works on 99% of all line lasers red and green.

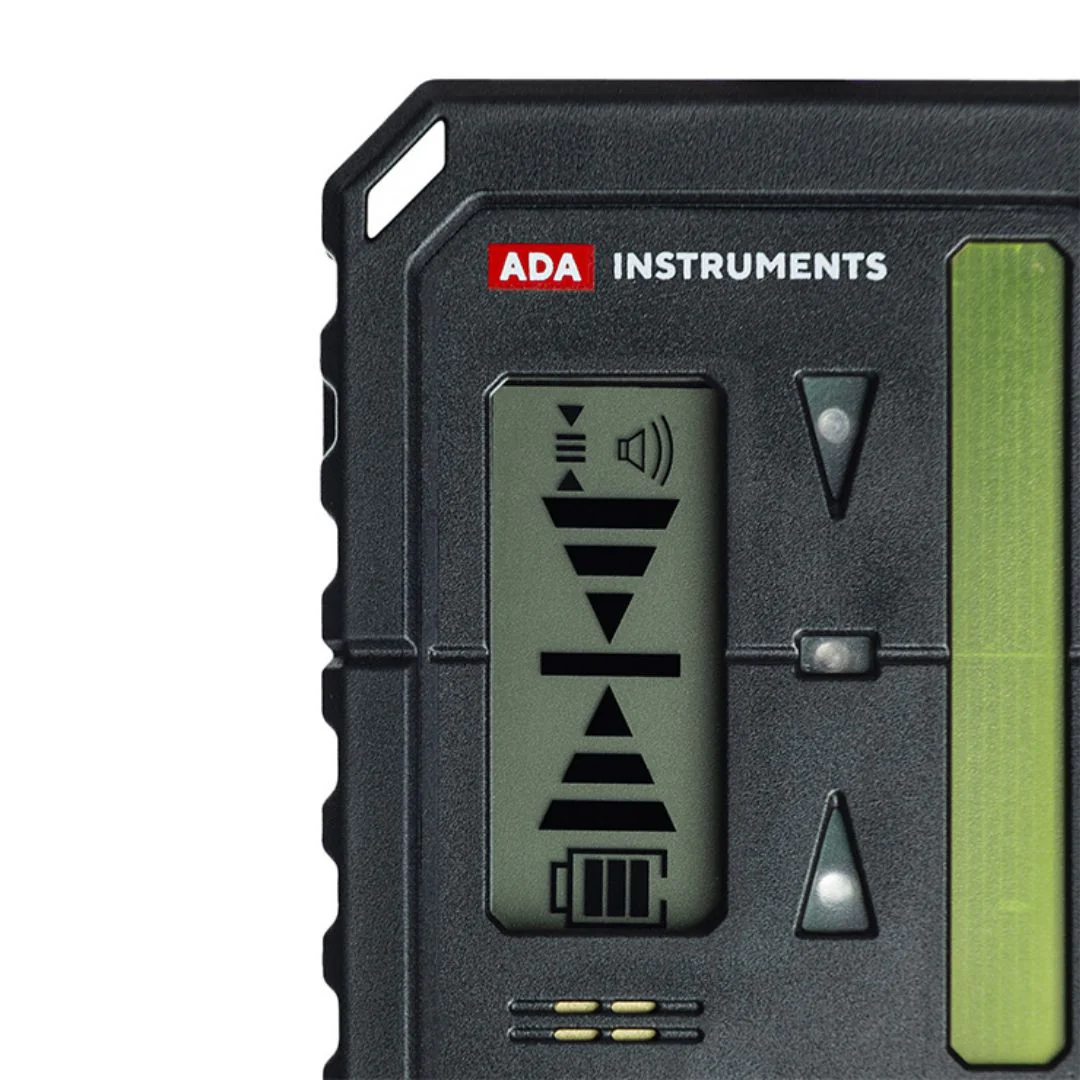

The ADA Marker 70 is readable from two sides, on the back only by means of LED readout

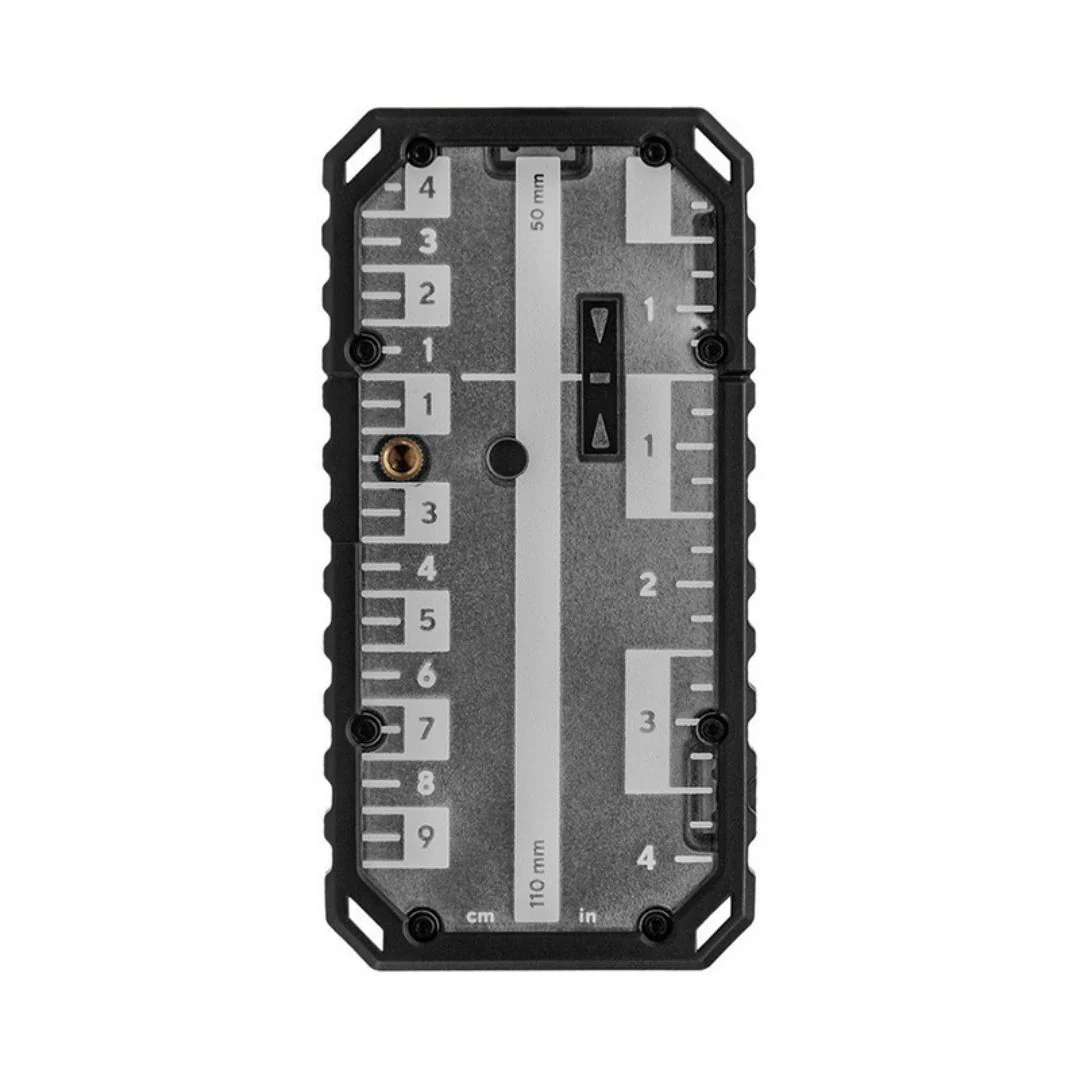

The back of the receiver is also equipped with a large target plate, which can be used to attach to a ceiling system due to the built-in magnets, on which the laser beam can be projected.

Supplied with pole clamp and batteries.

Specifications:

Working range: 5m - 70m (depending on type of line laser)
Accuracy: 1mm - 3mm (adjustable)
Protection: IP54
Power supply: 2x 1.5V AAA Batteries
Operating temperature: -10° to +50°
Dimensions LxWxH: 160 x 80 x 25 mm
Weight: 0.15 Kilogram

Included

• ADA LASER MARKER 70
• ADA LASER MARKER Staff clip
• Batteries
