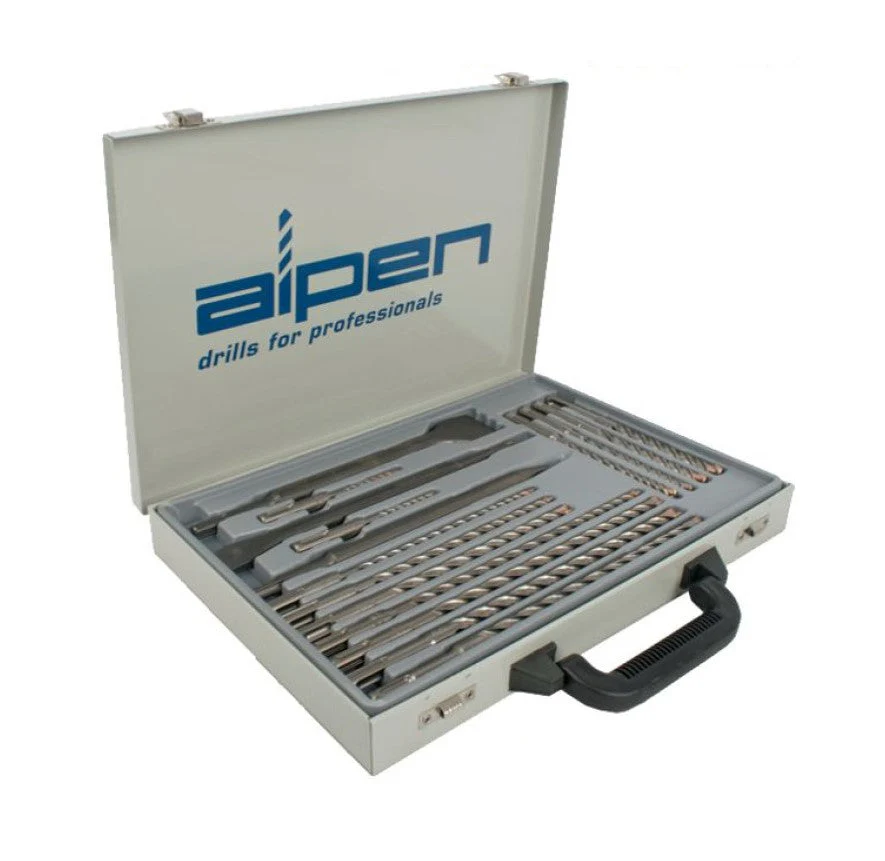

16Pc Kit16 SDS-plus Force X Drill Bit Set

Sizes

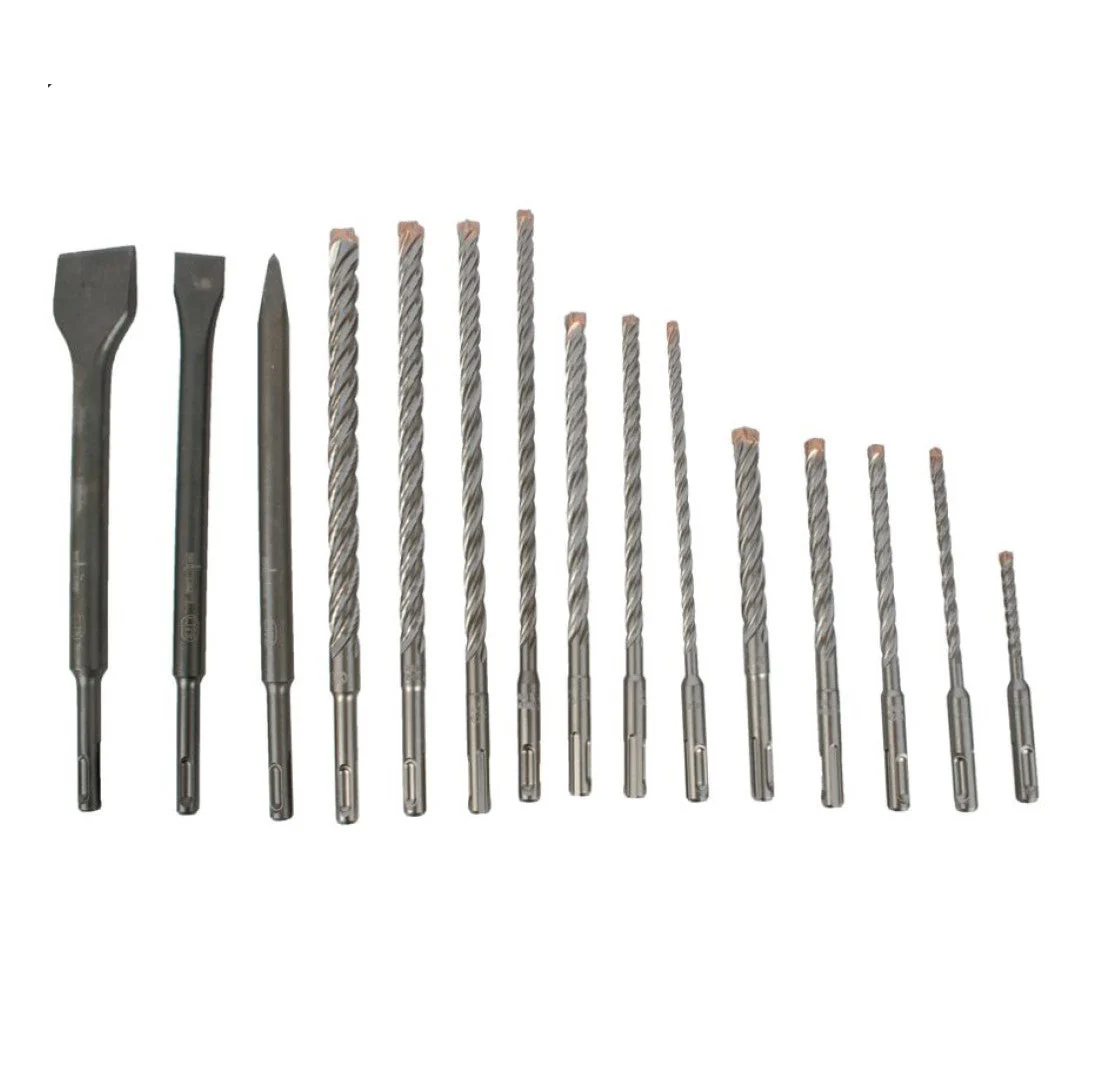

• Ø 5/6 x 110mm Ø 6/8/10/12 x 160mm Ø 6/8/10 x 210mm Ø 8/10/12/14 x 260mm + Point/Flat/Wide x 250mm Chisels

Range of application

• SDS-plus high performance drill bit with 4 tungsten carbide cutting edges and new progressive spiral design with dowel length indicator
• Problem-free drilling in reinforced concrete, vibrationless running and fast removal of drilling dust

Strengths

• 4 solid carbide cutting edges prevent it from getting jammed on steel
• Dowel length indicator for exact drilling depth
• Progressive spiral design for fast results

Specifications

Part No.	Diameter Ø mm	Complete length L1	Cutting length L2	Grind
ALP5002161	5mm	110mm	50mm	160°
	6mm	110mm	50mm	160
	6mm	160mm	100mm	160°
	8mm	160mm	100mm	160°
	10mm	160mm	100mm	160°
	12mm	16mm	100mm	160°
	6mm	210mm	150mm	160°
	8mm	210mm	150mm	160°
	10mm	210mm	150mm	160°
	8mm	260mm	200mm	160°
	10mm	260mm	200mm	160°
	12mm	260mm	200mm	160°
	14mm	26 mm	200mm	160°
Chisels	length	Width
Point Chisel	250mm
Flat Chisel	250mm	20mm
Wide Chisel	250mm	40mm
