80kg Dial Indicator Magnetic Stand with Fine Adjustment Ø6 / Ø8mm

• Holding Power: 80kg
• Base Size (mm): 60 x 50 x 55
• Main Pole Ø & Length (mm): Ø12 x 176
• Sub Pole Ø & Length (mm): Ø10 x 150
• Suits Clamping Diameters: Ø6 / Ø8

This is a high clamping force stand at 80kg

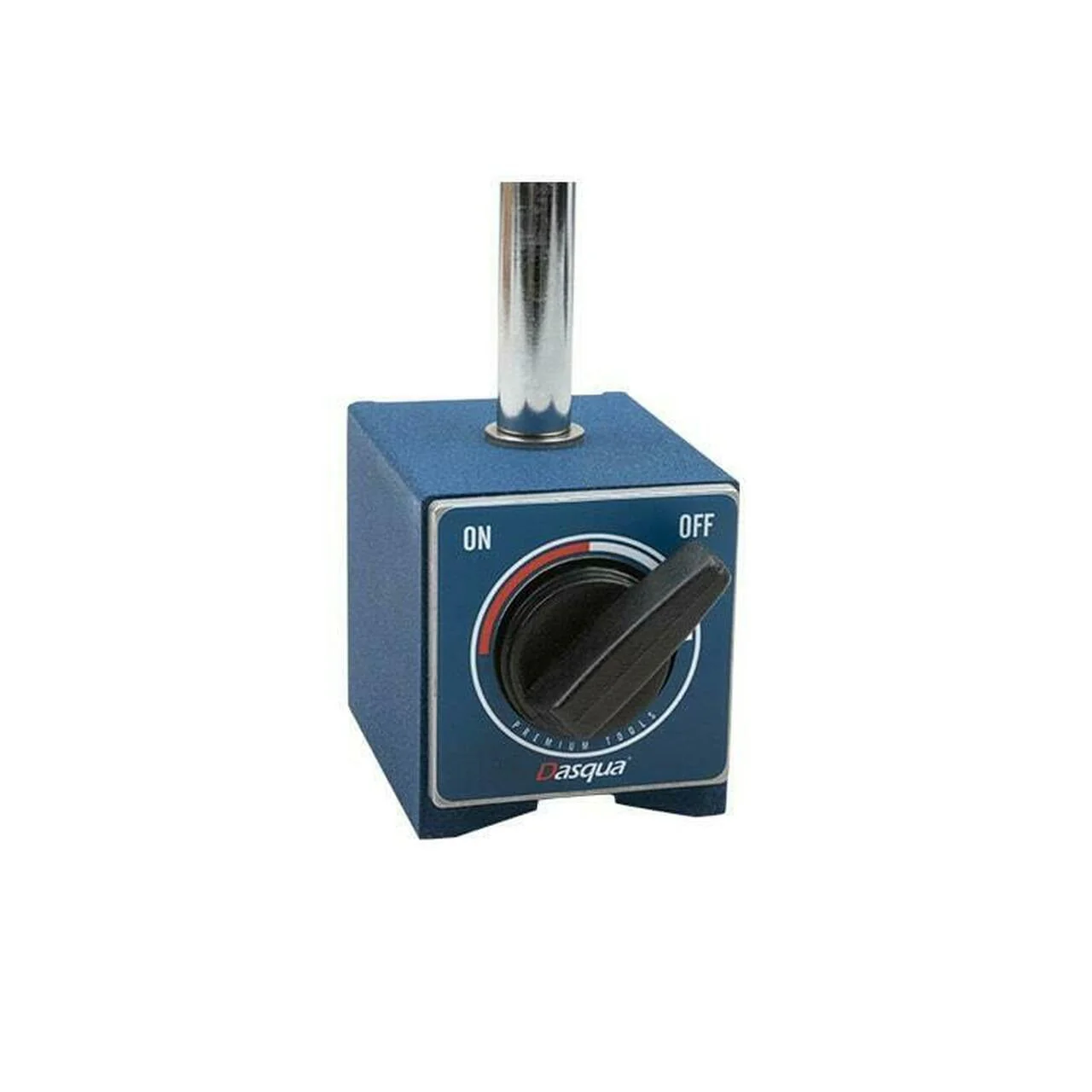

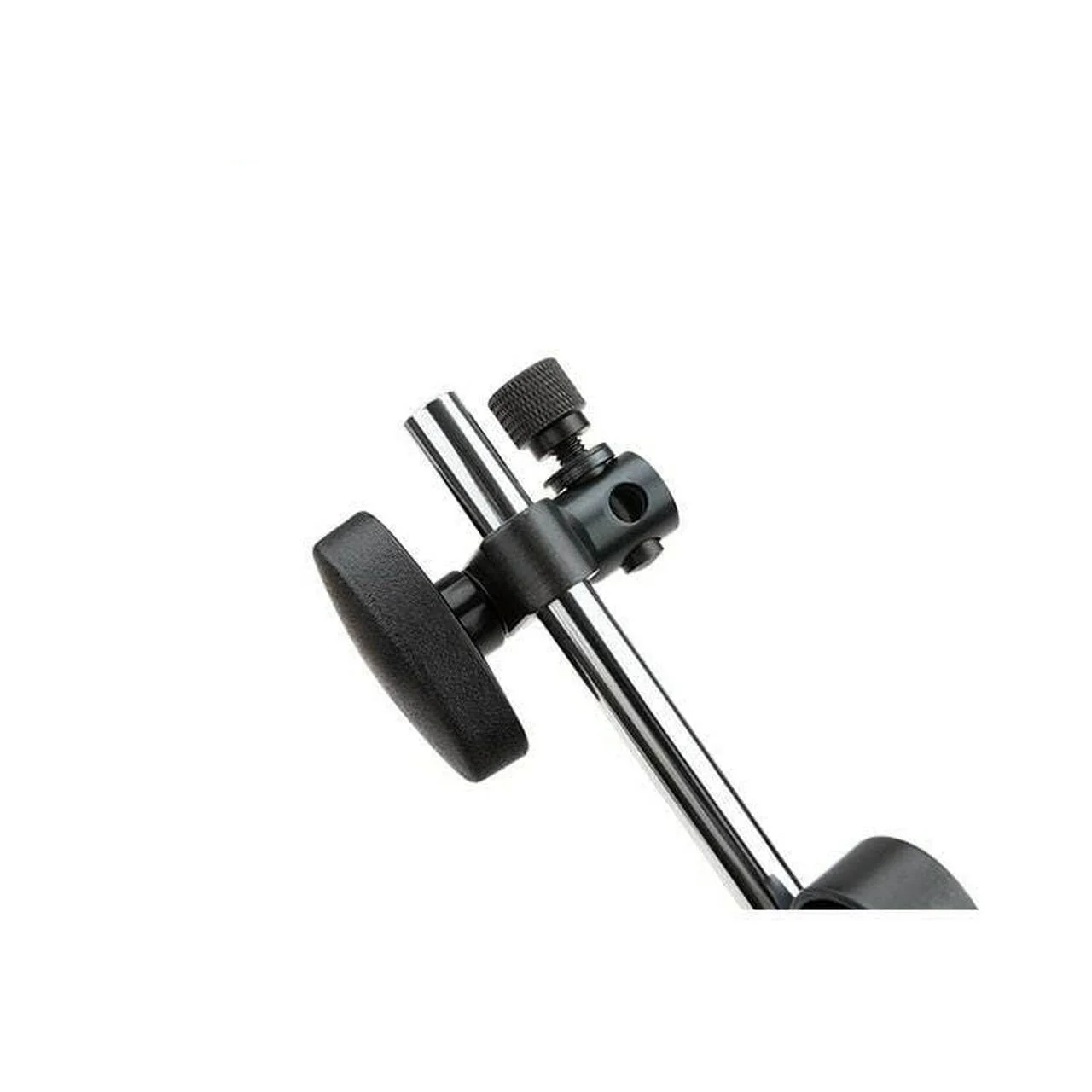

A Dasqua universal magnetic stand incorporates a switchable permanent magnet for simple mounting onto flat iron or steel surfaces and a v-grooved base for secure mounting on cylindrical surfaces. The arm can be manually locked in any position using the knob on the upright. Useful for holding dial indicators or dial test indicators during alignment and measurement operations.

The magnetic stand features a 80kg holding power and a 150° V-Grooved Base for mounting on cylindrical, as well as flat surfaces. The stand includes a fine adjustment device that is heated treated to ensure durability and rigidity.

The 7122 range includes dial indicator magnetic bases providing clamping power from 60kg to 130kg on the biggest model. There is a choice of Main and Sub Pole lengths from 176 to 355mm and 150 to 210mm respectively.Clamping Diameter options include 4, 6 & 8mm in metric and 3/8" imperial.

Key Features

• 80 kg Base Clamping Force
• Fine Adjustment Device
• Switchable Magnetic Base
• 150° V-Grooved Ground Base

Dimensional Drawing

• Specifications: Model 7122-0005
• Holding Power: 80kg
• Base Size: 60x50x55
• Main Pole Size: Ø12x176
• Sub Pole Size: Ø10x150
• Clamp Hold Diameter: Ø6/Ø8
• Weight: 1.5kg

What's Included?

• 80kg Switchable Magnetic Stand with Fine Adjustment
• User Manual
