Euroboor | Magnetic Base Drill 50mm

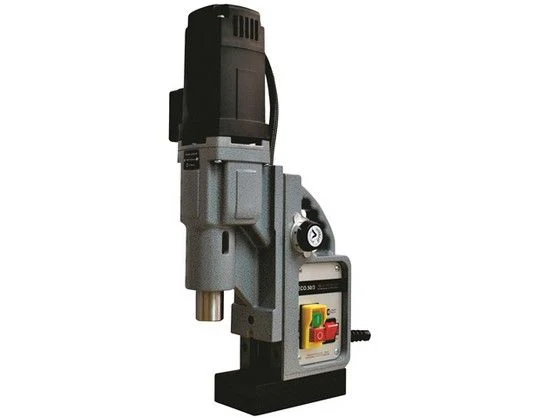

ECO.50-3 50mm Magnetic Base Drill
The Euroboor ECO.50/3 magnetic core drilling machine converts maximum power through its two speed oil lubricated gearbox. This improves motor efficiency and lifetime of key components. This portable industrial magnetic core drilling machine has an integrated slide which ensures stable support, faster drilling times and more accurate hole sizing.
This machine features
- High accuracy capstan hub
- MT3 spindle with integrated tool cooling and lubrication
- Magnet LED Indicator
- Strong dual coil CNC machined magnet
Additional features
- Integrated slide and one-speed gearbox for High accuracy, Enlarged lifecycle & Minimal vibration.
- High precision height adjustment for Low maintenance & Minimal wear correction.
Specifications
| Brand | Hitachi |
|---|---|
| Annular Cutter Size | 12 to 50mm |
| Frequency Rating | 50/60Hz |
| Length | 320mm |
| Load Speed | 235;425rpm |
| Magnet Dimension | 160 x 80 x 36mm |
| Magnetic Force | 1500kg |
| Motor Power Rating | 1250W |
| No Load Speed | 315;690rpm |
| Spindle Size | 1905 (Weldon) mm |
| Stroke Length | 170mm |
| Twist Drill Diameter | 1 to 16mm |
| Voltage Rating | 220 to 240V AC |
| Weight | 11.2kg |
