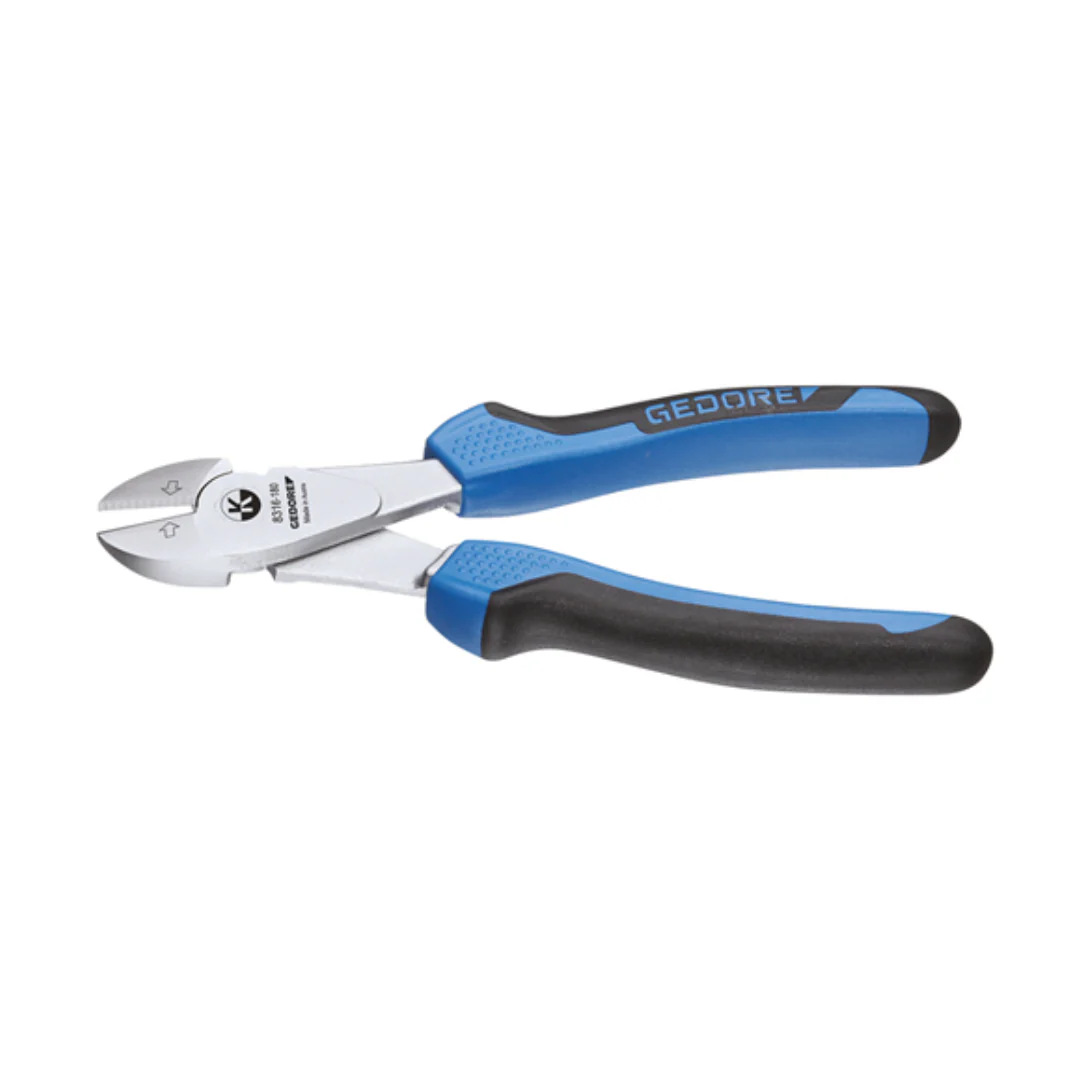

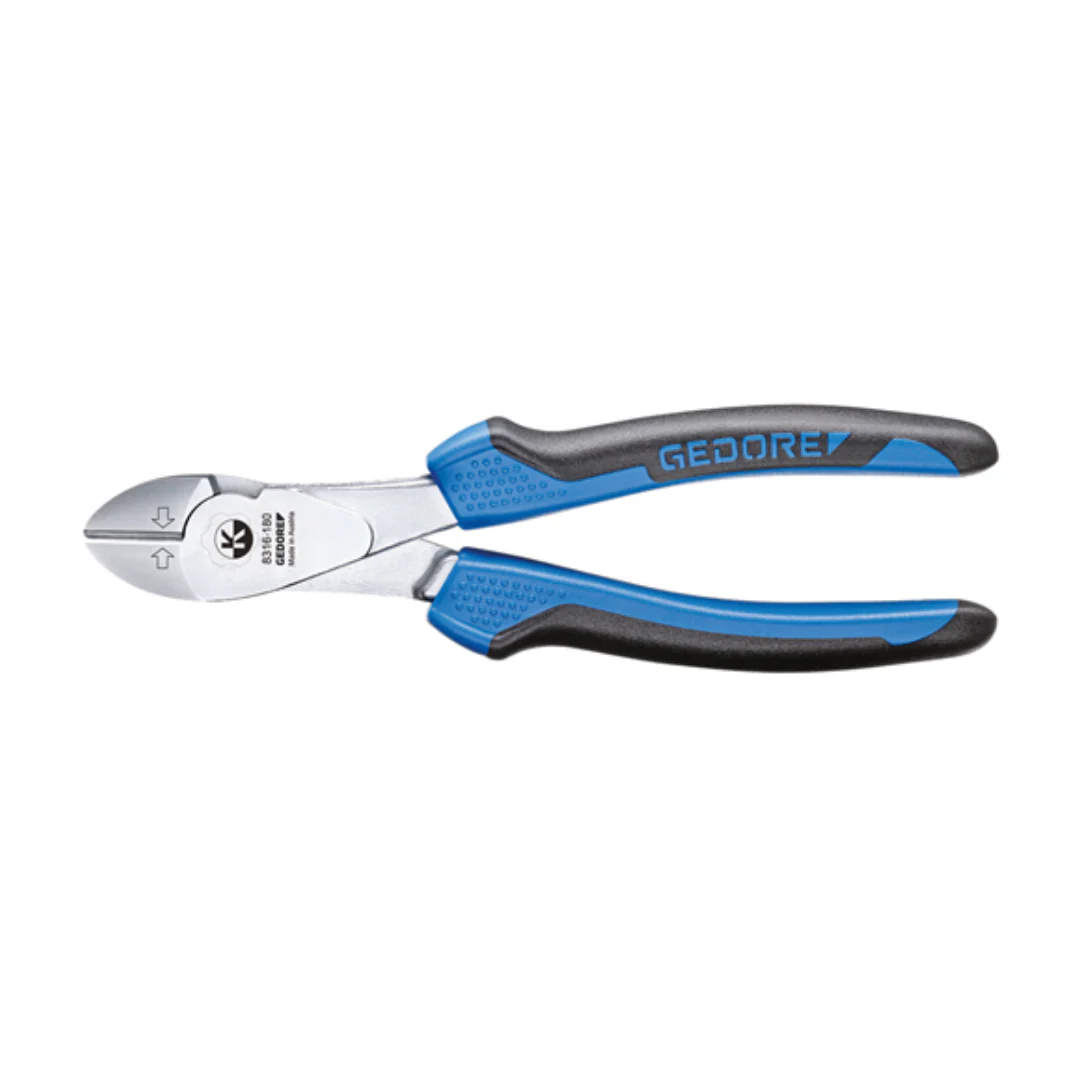

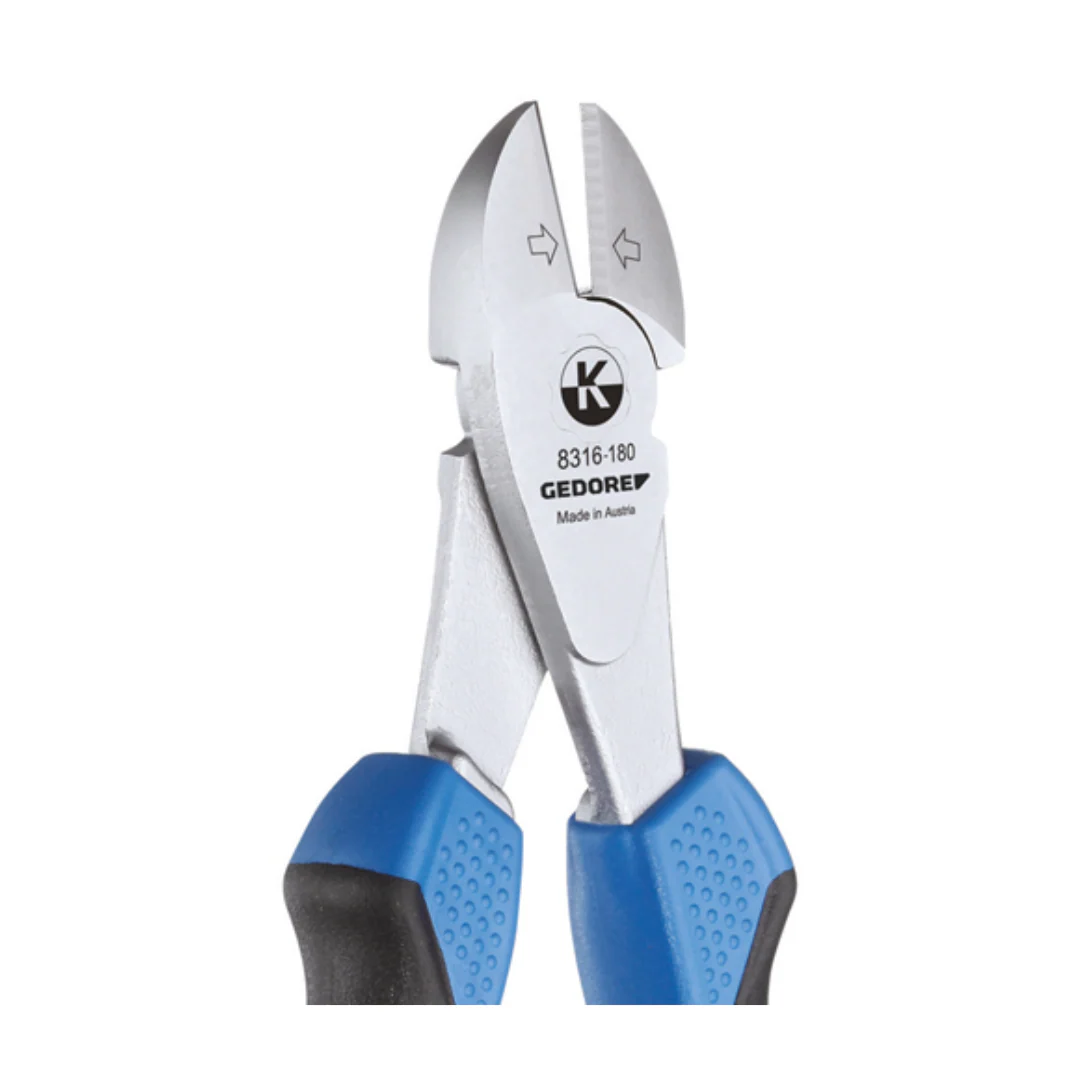

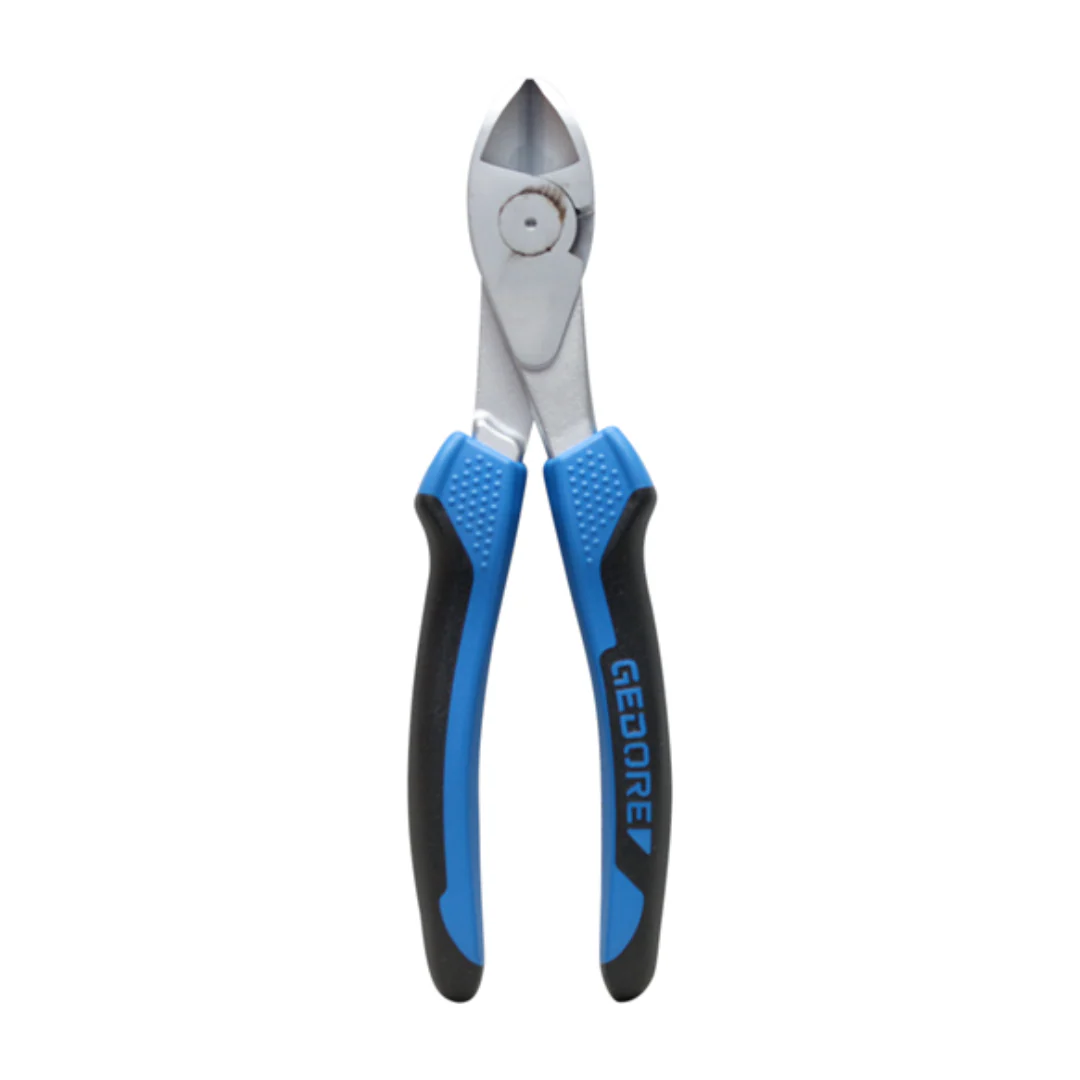

160mm Side Cutter Pliers

• Acc. to DIN ISO 5749
• Good lever action for easy cutting
• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
• JC = chrome-plated, with 2-component handle covers
• TL = steel-grey, with blue dipped non-slip handles
• Inductively hardened cutting edges (62 - 64 HRC) ensure constant cutting power over a long time span.
• Highest cutting performance with less effort due to the optimum interaction of cutting geometry, eccentric rivet bearing and ergonomic handle design.
• Model TC = chrome-plated, with blue dipped handles

Specifications

• Design non-sparking: No
• Standard: DIN ISO 5749
• ESD Yes/No: No
• Bevel: with
• Joint types: applied joint
• Handle design: 2C
• Handle colour: blue
• Hardening process: Induction hardened
• Width of head 1 [mm]: 24,5mm
• Head height 1 [mm]: 19mm
• Head thickness [mm] T1: 10,0mm
• Material: Heat-treated steel
• Surface: chrome-plated
• Opening spring present: No
• Compliance: konform
• Blade shape: with facet
• Hardness of cutting edge: 63 - 65 HRC
• Cutting edge length [mm]: 19 mm
• Cutting values: Piano wire: 2mm / 12 AWG Hard wire: 2,5mm / 10 AWG Medium hard wire: 3,4mm / 8 AWG
