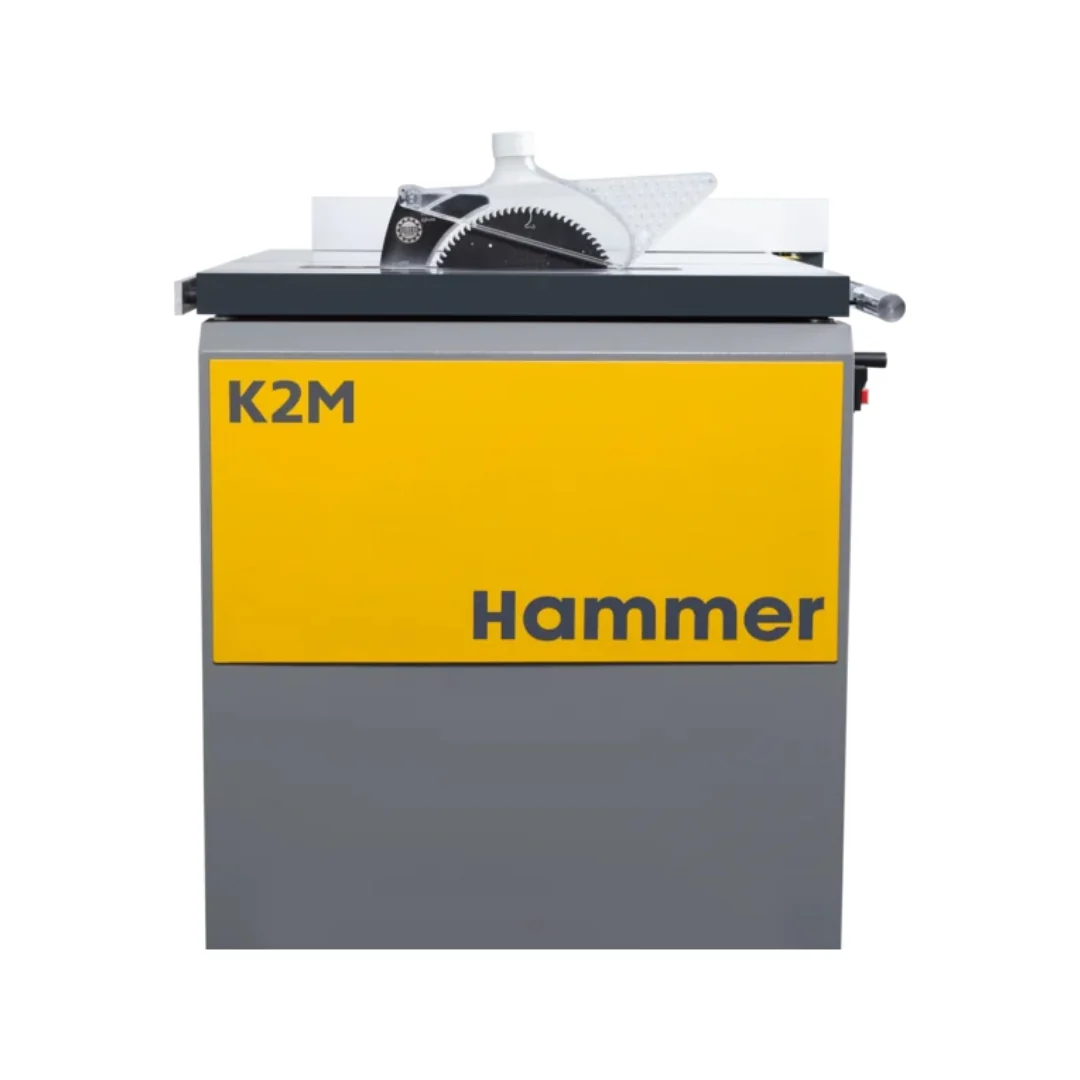

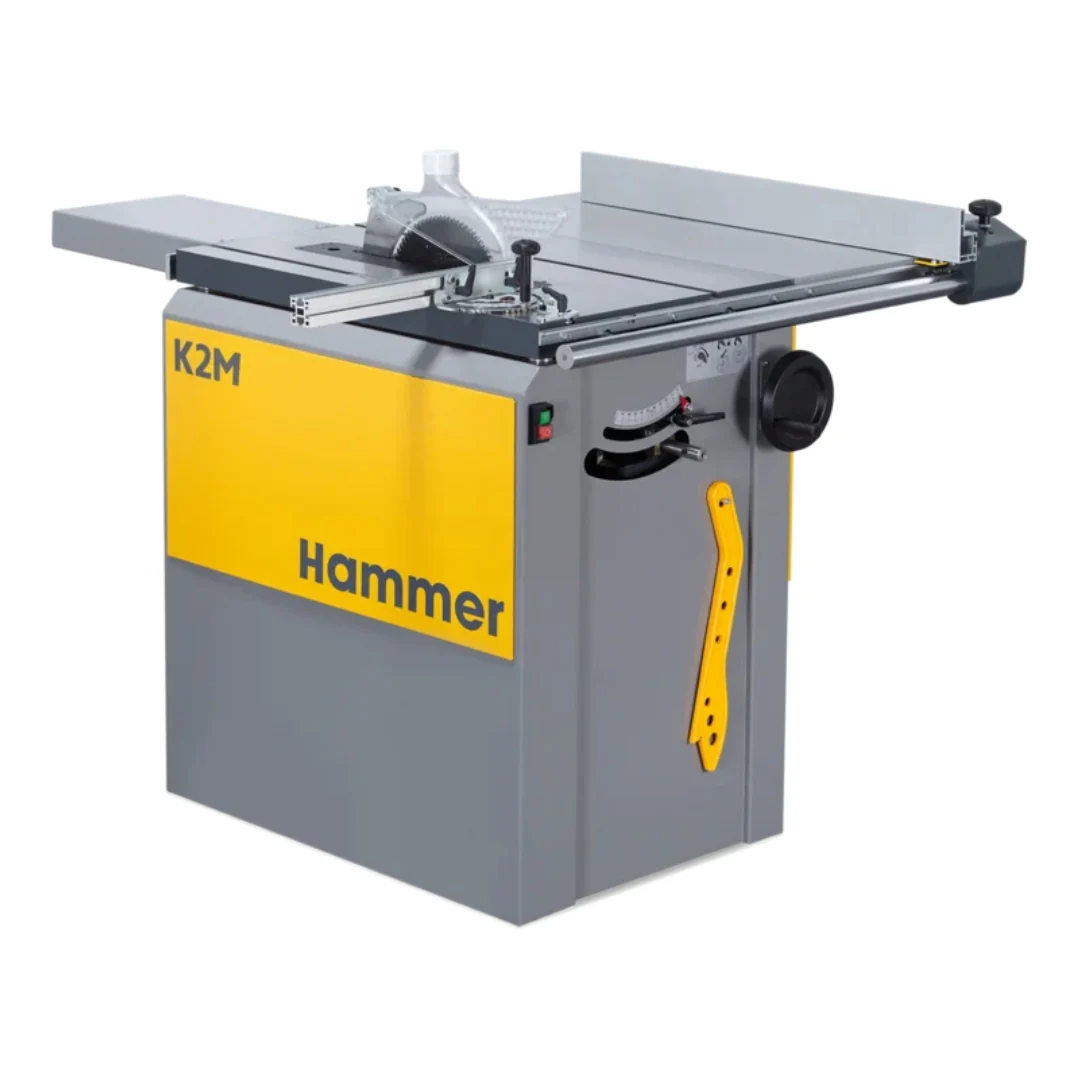

K2M Table Saw

Stationary, compact panel saw for the discerning, cost-conscious woodworker

Saw Blade Diameter [mm]	250 - 254
Max. Cutting height of saw blade (mm)	80,5 at 254 mm
Dado Blade max. Diameter (inch)	180
Dado Blade Width (inch)	5 - 20
Saw Arbor (mm)	30 without driving pins
Saw Blade Tilt	0° - 45°
Rotation speed (rpm)	5000
Rip Capacity [mm]	610
Power (HP)	2.6
Motor Power [kW]	1,9
Frequency [Hz]	50
Voltage [V]	1 x 230
Amp Breaker	16 A (C)
Dust Port Connection Saw Unit (inch)	100
Dust Port Connection Saw Guard (inch)	50
Weight [kg]	150
Dimensions [mm]	875 x 600 x 1210
Plug type	Typ CEE 7/7
