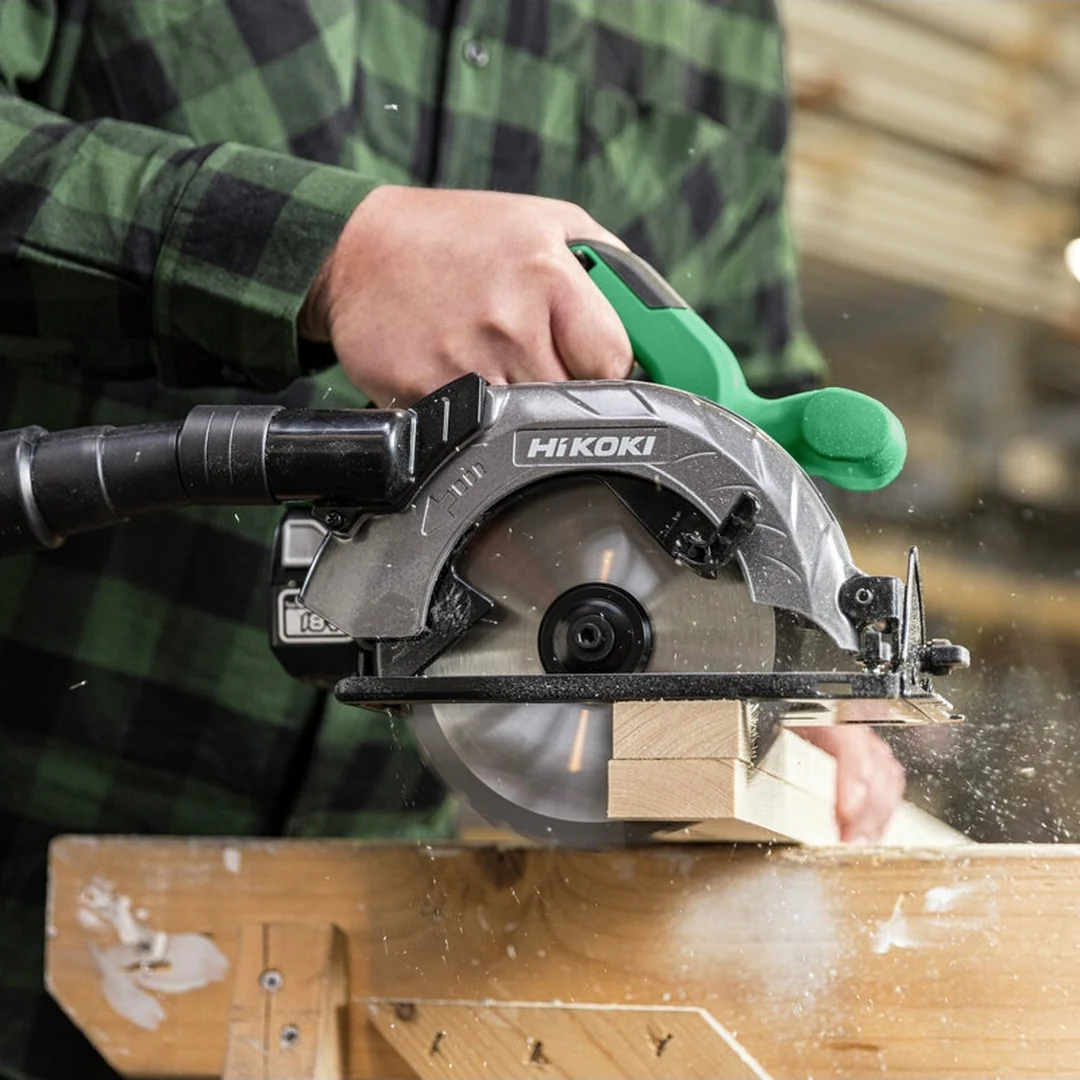

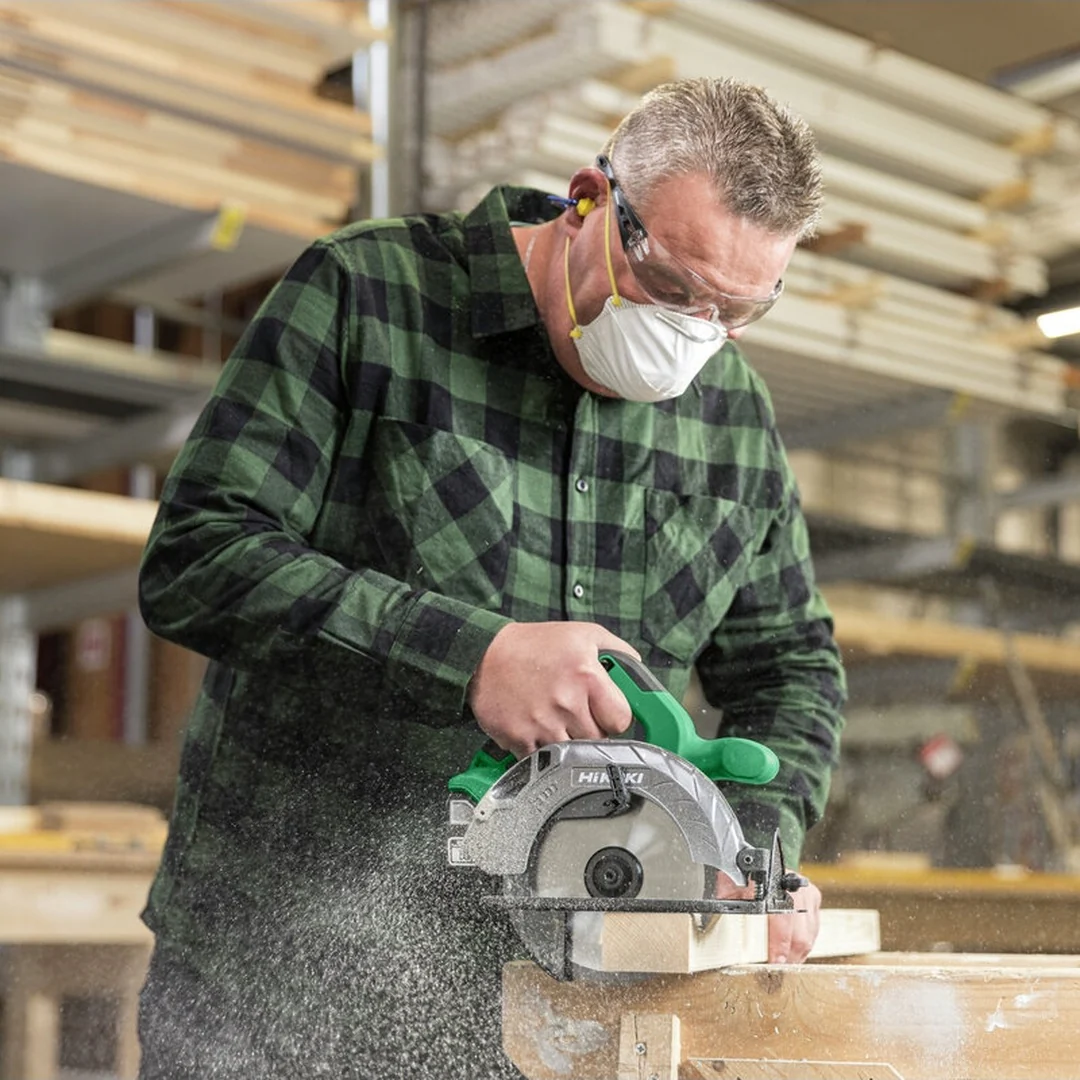

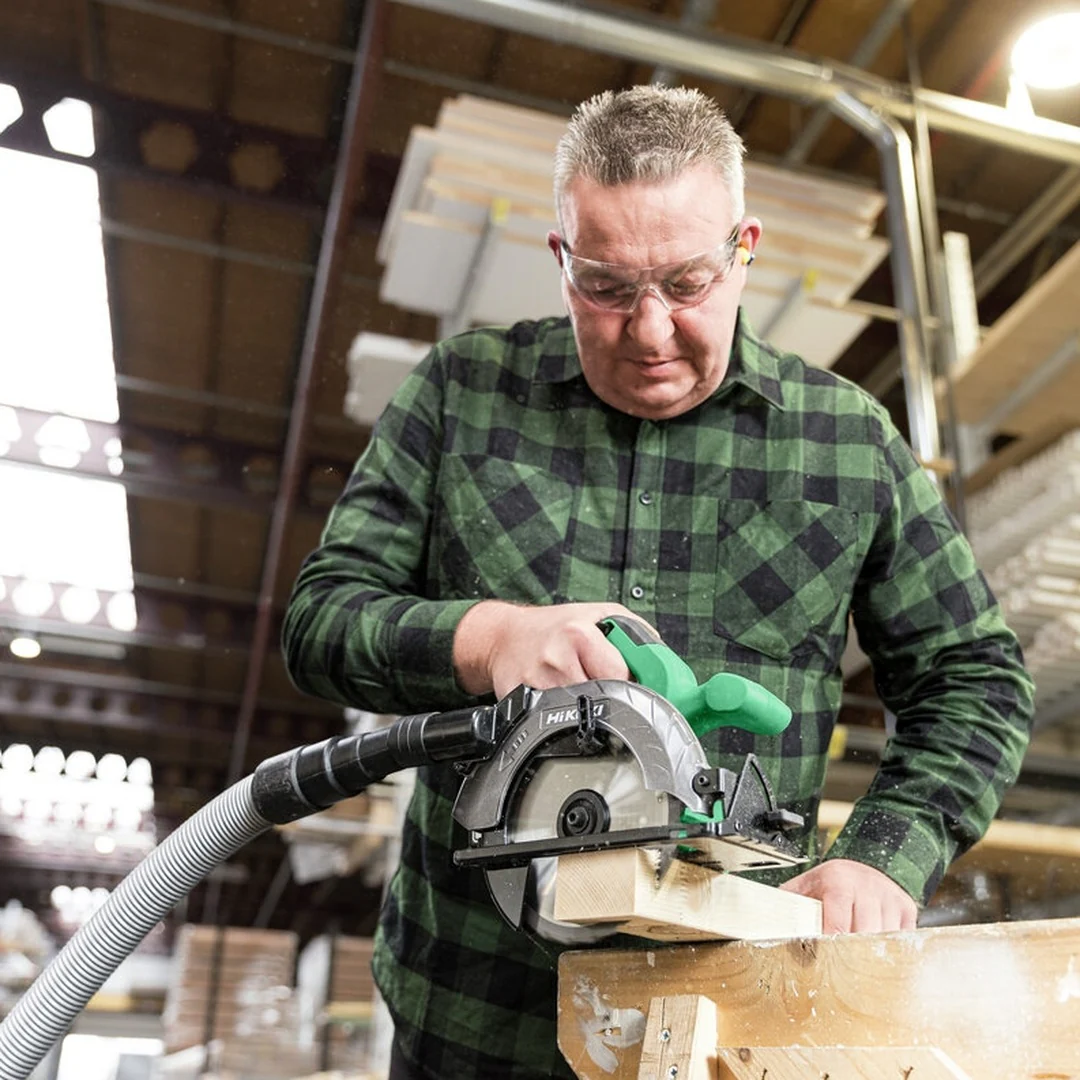

18 V 165 mm circular saw with 57 mm cutting depth

• Optimal saw blade visibility from both sides guarantees high-precision cuts
• Equipped spindle lock for fast and easy blade change
• Very compact and lightweight for maximum flexibility
• Robust steel base plate for easy gliding on rough construction sites
• 2-stage safety switch
• Electric brake
• Soft-touch handle for safe, slip-free handling

Specification
Articlenumber	C1806DAW4Z
Blade diameter	165 mm
Bore size	20 mm
No load speed	3800 /min
Max. cutting depth (0°)	57 mm
Max. cutting depth (45°)	38 mm
Maximum bevel angle	45 °
Undercut angle	None
Weight (without battery pack)	3 kg
Weight (with battery pack)	3.38 kg
Tool length	290.6 mm
Tool width	212.4 mm
Tool height	267 mm
Dust box attachment	None
Material: gear cover	Aluminum Die Cast
Brake	Yes
EAN	4966376338283

Included

• Saw blade
• 5mm Hex bar wrench
• Dust collector
• Guide
• Carton Box
