LD080PI Laser Distance Measure

Provides both standard and metric units of measurement.

• 360º Inclination sensor
• Height tracking
• Multiple measurement functions for increased versatility of applications:
• Distance, Area, Volume, Permanent, Min/Max, Add/Subtract, Stake-Out,
• Pythagoras (2 point), Pythagoras (3 point), Pythagoras (partial height)
• Battery run time delivers up to 5,000 measurements for continuous work and increased productivity
• Records history of 20 measurements for convenience
• Auto power-off function automatically shuts the device off for increased run time performance
• Rubber over-mold for increased protection and durability
• Simplified user interface buttons and screen for convenience
• Backlight L.E.D. display for increased screen visibility

Included

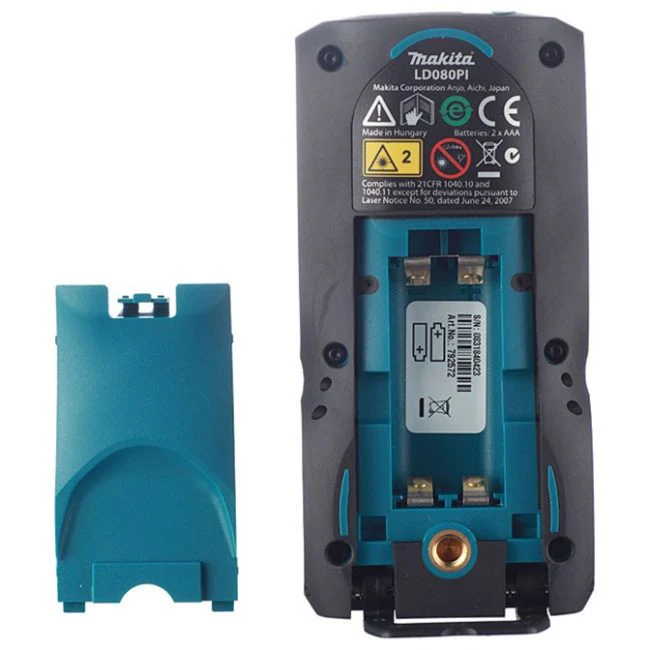

• Standard Equipment - Pouch, strap, 2x AAA batteries.

Specifications

• Typical Measuring Tolerance: ± 1.5mm / 10m
• Max Measuring Tolerance: ± 2.5mm / 10m
• Range of target plate: 80m
• Typical Range: 80m
• Smallest unit displayed: 0.1mm
• Laser point: 6mm at 10m
• Laser class: 2
• Laser type: 635nm < 1mW
• Protection class: IP54
• Auto laser switch off: after 90s
• Auto power switch-off: after 180s
• Battery durability: (2 x AAA)
• Dimensions: H: 117 x D: 57 x W: 32mm
• Net weight (with batteries): 138g
• Temperature range:
• Storage -25 to 70 degrees Celsius
• Operation -10 to 50 degrees Celsius
