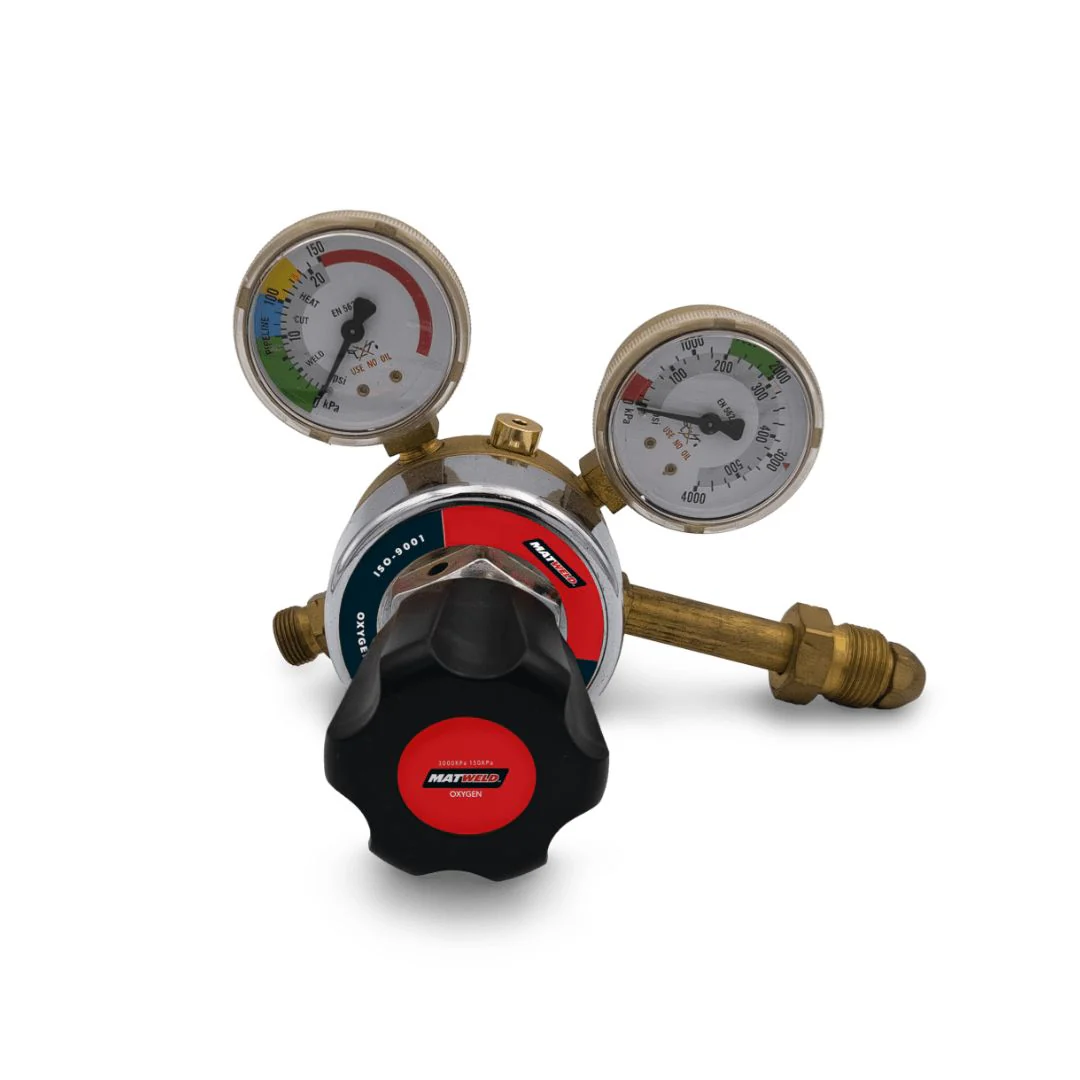

H/D Multi Stage Oxygen Regulator

This regulator features two stages in one forged brass body, effectively reducing full cylinder pressure by approximately 90 percent in the first stage and accurately controlling flow and delivery pressure in the second stage. It includes a chrome bonnet, non-removable adjustment knob, and a sintered metal filter to trap impurities. With a 3/8 inch right-hand thread outlet for oxygen and 3/8 inch left-hand thread outlet for acetylene, this regulator also comes with easy-to-read gauges for convenient monitoring. It conforms to EN ISO 2503 standards.

Features

• Two stages in one forged brass body
• Effective pressure reduction
• Chrome bonnet
• Non-removable adjustment knob
• Sintered metal filter to trap impurities
• Easy-to-read gauges
• Conforms to EN ISO 2503

Specifications

Type	Oxygen
Control Knob Type	Non-removerable
Body Material	Forged Brass
Bonnet Finish	Chrome
Width	17,0cm
Length	24,0cm
Height	21,0cm
Weight	2,38kg
