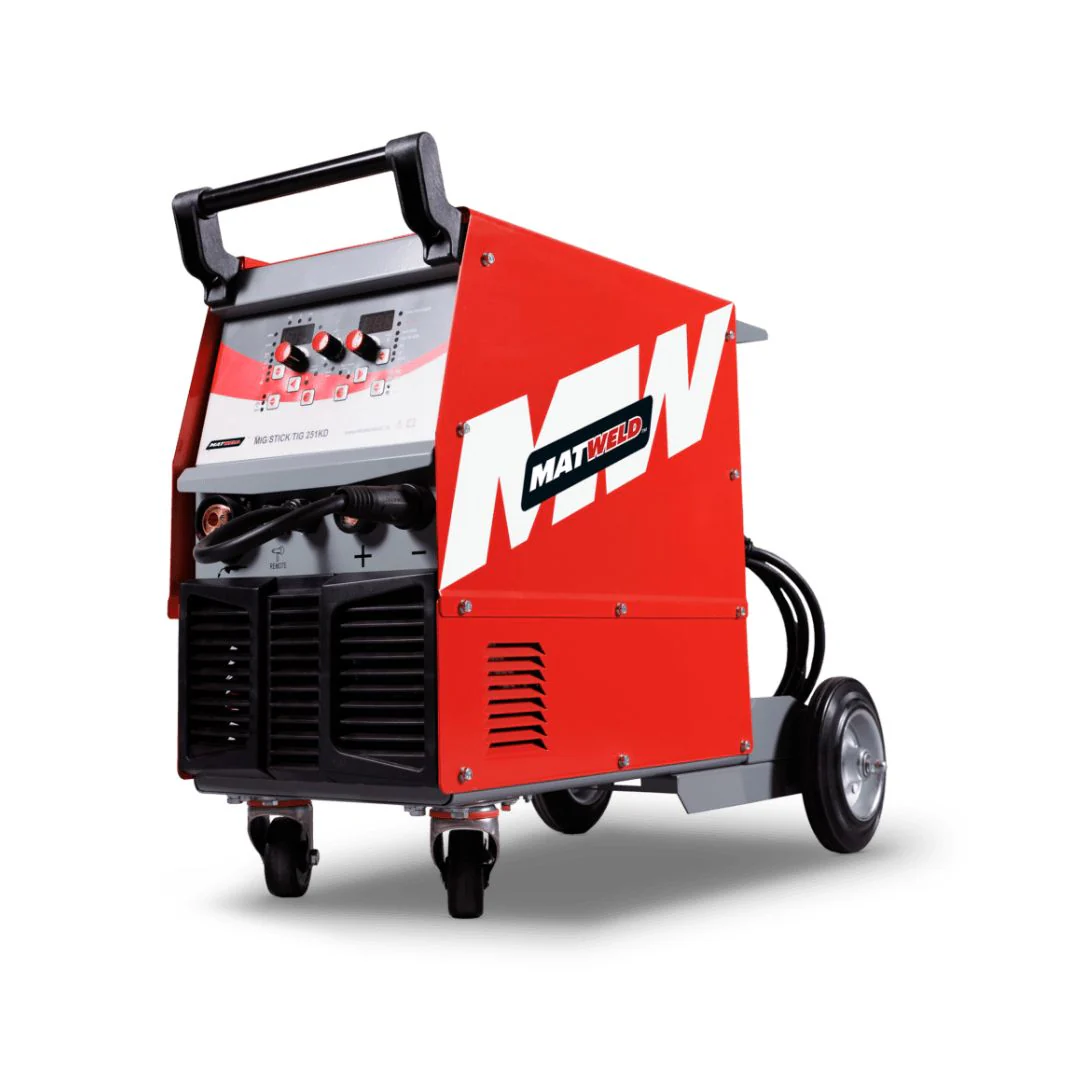

250A Single Phase 220V Multi-Process IGBT

Experience cutting-edge welding technology with the MAT9105. This IGBT inverter-based machine offers constant current, constant voltage (CC/CV) functionalities and a high 60% duty cycle at 40°C. Its three welding processes (MIG, TIG, MMA Stick Welding) in one machine provide exceptional versatility for various welding applications.

Technical

• Voltage: Single Phase 220V
• Technology: IGBT inverter-based
• Duty Cycle: 60%
• Welding Processes: MIG, TIG, MMA Stick Welding

Specifications

Input Power Voltage	220V ±15%
Frequency	50/60HZ
Rated Input Power	45kVA
No Load Voltage	60V
Output Current Range (MMA)	20 – 200A
Output Current Range (TIG)	15 – 250A
Output Current Range (MIG)	30 – 250A
Rated Work Voltage	28V
Duty Cycle %	60%
Suitable Welding Wire	0.8/1.0mm
Type of Wire Feeder	Internal
Protection Class	IP21S
Width	46,0cm
Length	96,5cm
Height	71,0cm
Weight	70,00kg
