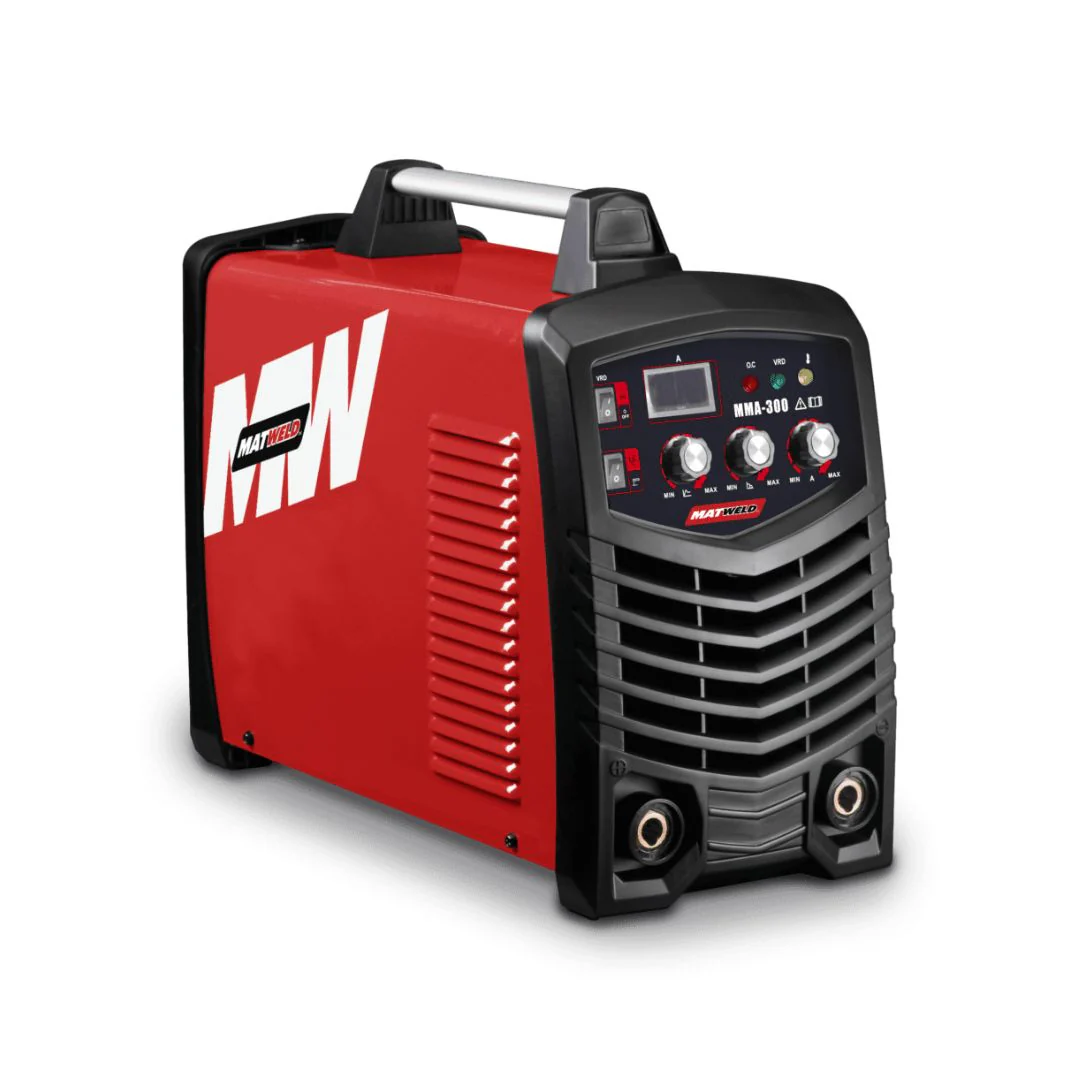

The MAT9059N 300 Amp Welder is a three-phase 380V DC inverter suitable for MMA/TIG welding. It provides a stable arc with excellent striking capabilities, Hot Start MMA, Over Voltage and Over Current protection, and adjustable Arc Force. This welder comes with a digital display and VRD function.

Specifications

Rated Input Capacity - KVA	12KVA
Frequency	50/60HZ
Rated Input Voltage	380V
No Load Voltage ±5%	20V
Output Current ±5%	20 – 300A
Rated Output Voltage	32V
Duty Cycle %	60%
Diameter for Electrode	1.6 – 5.0mm
Protection Degree	IP21S
Width	38,5cm
Length	66,5cm
Height	61,5cm
Weight	26,40kg

NB: All VRD machines must be built in and cannot have an on/off function.
