Milescraft JointMate Dowel Jig Kit

Everything in one set for quick dowel drilling

Dowel drilling made easy. With the template set for dowel drilling you have everything at hand: template, drill including depth adjustment rings, dowel markers, dowels in the usual sizes, as well as glue.

Advantages:

• No removal of chips necessary
• Dowel hole without screwdriver
• With centering aid for exact hole spacing
• suitable for dowel connections in all types of wood
• Guide stop quickly and easily mounted and set up
• for corner, longitudinal and surface joints
• can also be used for edge processing

Technical data:

• With 6 mm dowel hole for workpiece thickness from 13 - 16 mm
• With 8 mm dowel hole for workpiece thickness from 16 - 19 mm
• With 10 mm dowel hole for workpiece thickness from 19 - 32 mm

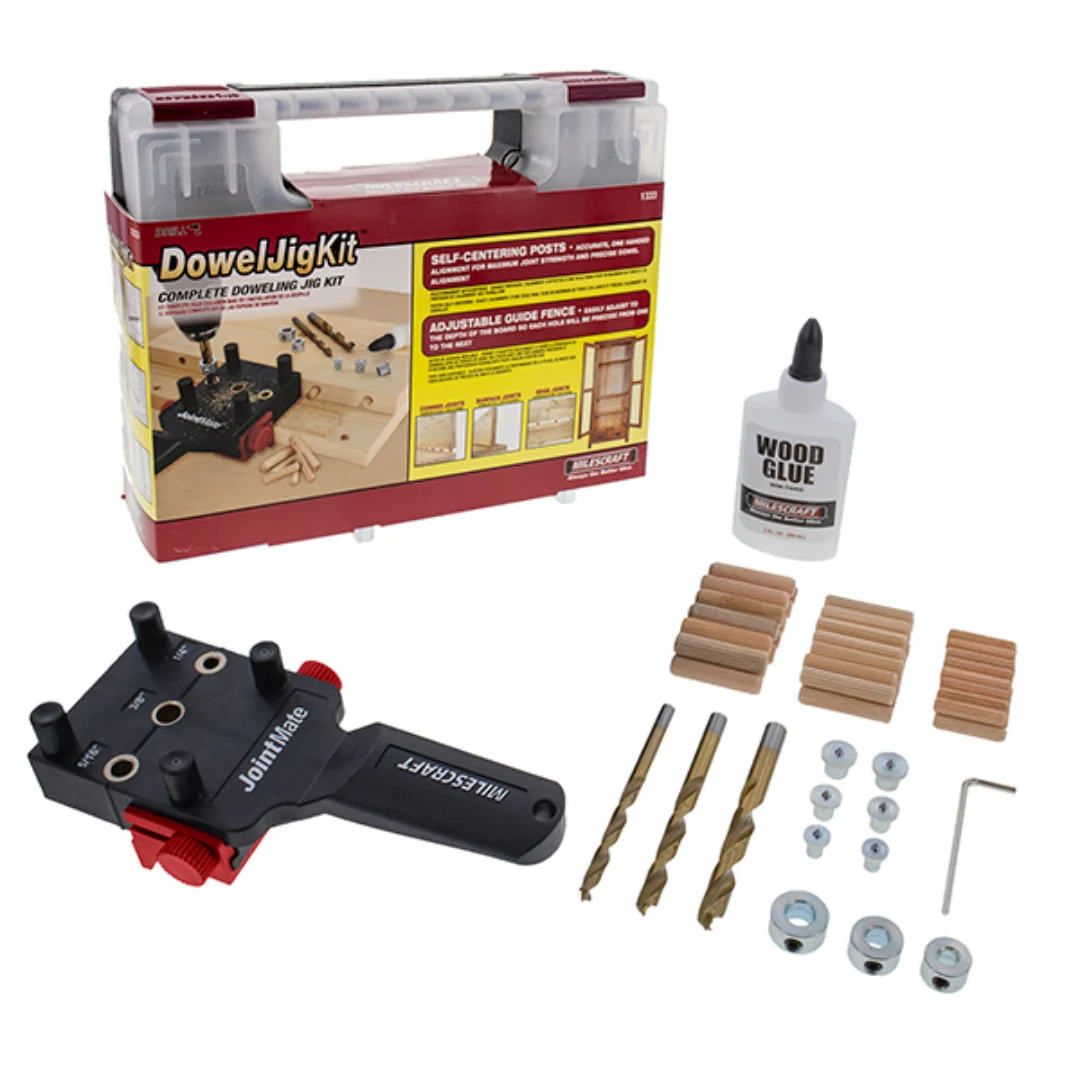

Delivery Includes:

• 1x drilling template JointMate
• 1x depth adjustment ring Ø 6 mm
• 1x depth adjustment ring Ø 8 mm
• 1x depth adjustment ring Ø 10 mm
• 2x dowel markers Ø 6 mm
• 2x dowel markers Ø 8 mm
• 2x dowel markers Ø 10 mm
• 1x hexagon key 2,5 mm
• 26x dowels Ø 6 mm
• 24x dowels Ø 8 mm
• 22x dowels Ø 10 mm
• 1x dowel drill Ø 6 mm
• 1x dowel drill Ø 8 mm
• 1x dowel drill Ø 10 mm
• 1x wood glue 59 ml
